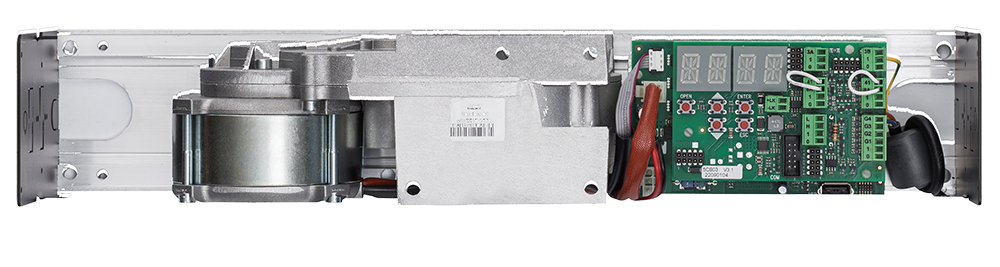

Swing Door SW80
The SW80 is the automation for swing doors produced with a double spring, that allows the door closure even in lack of power supply.
The big spring works during the entire manoeuvre of the doors and guarantees a smooth movement, while the small spring works only in the last 6° of closure to overcome any resistance.
Technical Data
Dimensions:
104 x 118 x 463 mm
Max weight:
300 Kg x 0,8 m
Opening and closing time:
2 – 6 sec
Power supply:
100-240 Vac 50/60 Hz
Power (stand-by):
70 W (8 W)
Rated load:
40 Nm
Protection rating:
IP20
Operating temperature:
-15° C / +50° C
Connecting port:
USB
